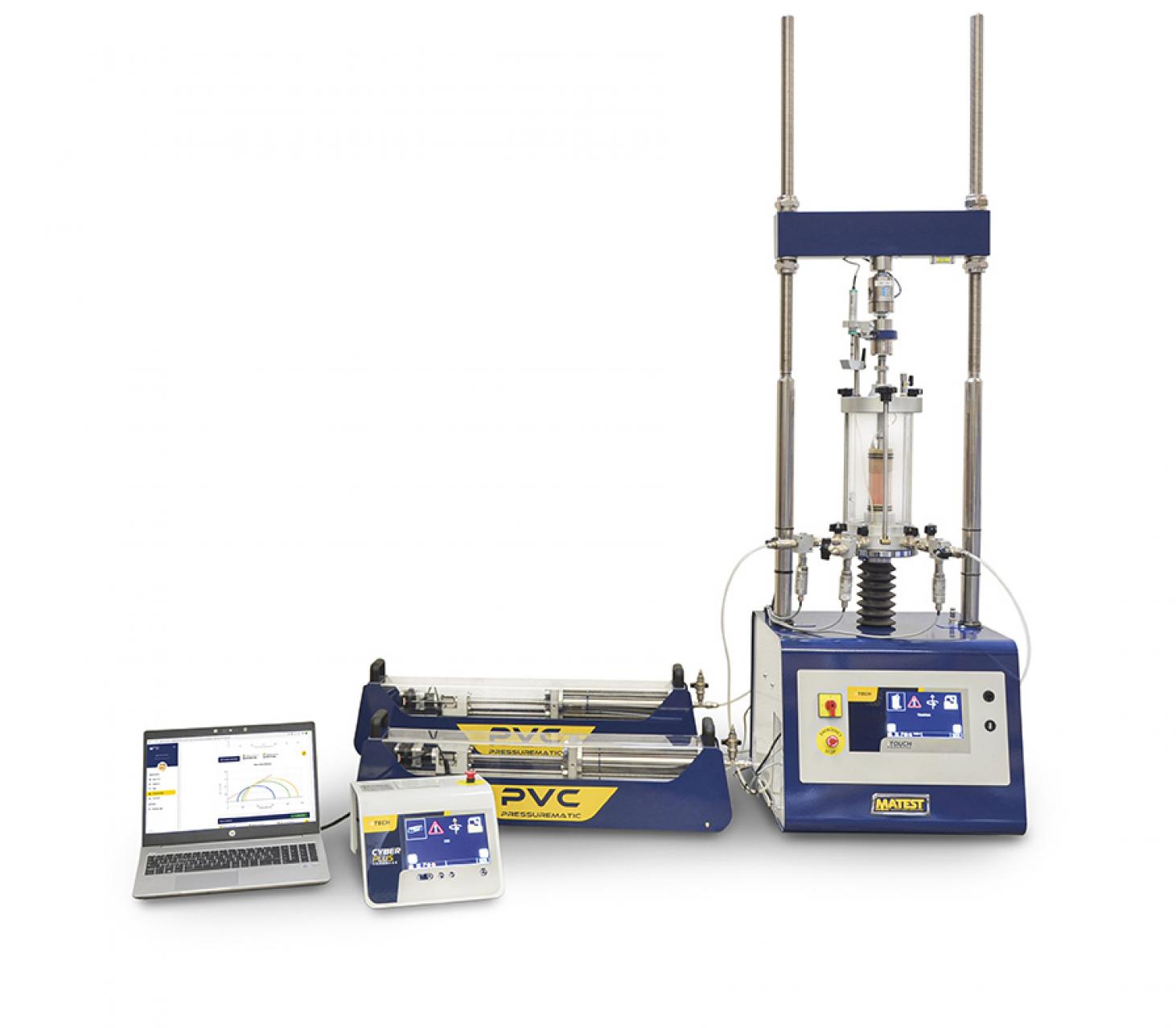

Triaxial load frame 50kN

Ksh 0

This versatile, compact, heavy-duty load frame has been designed for routine tests, for central laboratories, but also for research purposes. The frame is of rigid chromed steel twin-column construction. The electronic colour digital touch-screen display with a microprocessor control system allows to perform tests within a speed range of 0.00001 to 12 mm/min. The maximum load capacity is 50 kN, and it is suitable either for cells S305 (max. specimen size 70x140 mm) and S306N (max. specimen size 100x200 mm), Matest or other manufacturers made. The load plate is foreseen of the electric end of stroke, to save the machine from wrong manipulations. The frame is supplied with loading ram and sphere but without load rings, dial gauges, electric load cells or displacement transducers that must be ordered separately.

This versatile, compact, heavy-duty load frame has been designed for routine tests, for central laboratories, but also for research purposes. The frame is of rigid chromed steel twin-column construction. The electronic colour digital touch-screen display with a microprocessor control system allows to perform tests within a speed range of 0.00001 to 12 mm/min. The maximum load capacity is 50 kN, and it is suitable either for cells S305 (max. specimen size 70x140 mm) and S306N (max. specimen size 100x200 mm), Matest or other manufacturers made. The load plate is foreseen of the electric end of stroke, to save the machine from wrong manipulations. The frame is supplied with loading ram and sphere but without load rings, dial gauges, electric load cells or displacement transducers that must be ordered separately.

Width
128mm
Height
508mm
Depth
85mm
Weight
52g
Quality checking
Yes
Freshness Duration
3 days
When packing
Without touch of hand
Each Box contains
60 pcs
